Allwinner H3 Chip Banana PI BPI M2+ (M2 Plus) Board

Category : Computer & Office
USD 46.00

Allwinner H3 Chip Banana PI BPI M2+ (M2 Plus) Board

Description

Allwinner H3 chip Banana PI M2 plus quad core computer

Epacket logistics is expected to be 15-30 working days,and slow update of logistics informations, If you mind ,please choose the fast logistics channel . Thank you : )

Support : BPI OV 5640 camera, not support 7/5 inch touch screen

Introduction:

Banana PI BPI-M2+ is the open source hardware platform,Banana PI BPI-M2+ is an quad core version of Banana Pi,it support WIFI on board. use Alliwnner H3 chip on board. and mini size only 65mm*5mm

Banana Pi BPI-M2+ series run Android,Debian linux,Ubuntu linux, Raspberry Pi image and others image.

Banana PI PBI-M2+ hardware: 1Ghz ARM7 quad-core processor, 1GB DDR3 SDRAM, 8G eMMC flash on board,and SDIO wifi&BT4.0 module on board.

Banana PI BPI-M2+ with Gigabit ethernet port, It can run with Android 4.4 smoothly. it can easily run with the game it support 1080P high definition video output and 4K support, the GPIO compatible with Raspberry Pi B+ and can support raspbian Image

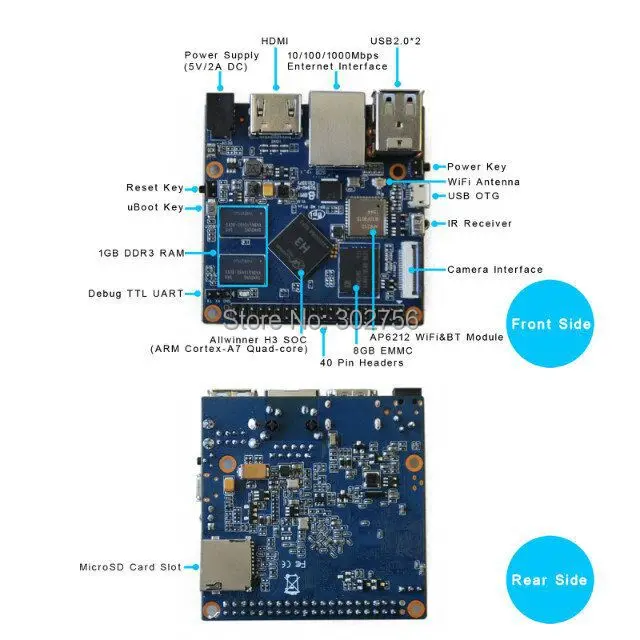

Hardware interface:

Hardware spec:

HardWare Specification of Banana Pi M2+(Plus)

CPU

H3 Quad-core Cortex-A7 H.265/HEVC 4K

GPU

Mali400MP2 GPU @600 MHz,Supports OpenGL ES 2.0

Memory

1GB DDR3 (shared with GPU)

Flash

8GB eMMC flash onboard

Network

10/100/1000 Ethernet

WIFI&BT

SDIO AP6212 for Wifi &BT 4.0(option AP6181 AP6335)

Video Input

A CSI input connector Camera:1 Supports 8-bit YUV422 CMOS sensor interface,2 Supports CCIR656 protocol for NTSC and PAL, 3 Supports SM pixel camera sensor, 4 Supports video capture solution up to [email protected]

Video Outputs

Supports HDMI output with HDCP, Supports HDMI CEC, Supports HDMI 30 function, Integrated CVBS, Supports simultaneous output of HDMI and CVBS

Audio Outputs

HDMI

Power

5V/2A DC input can supply power, but USB OTG input don’t supply power

USB 2.0 ports

two USB 2.0 HOST, one USB 2.0 OTG

GPIO

40 Pins Header,compatible with Raspberry Pi B+

LED

Power led & Status led

IR

IR input on board

OS

Android, Ubuntu, Debian, Raspberry Pi Image

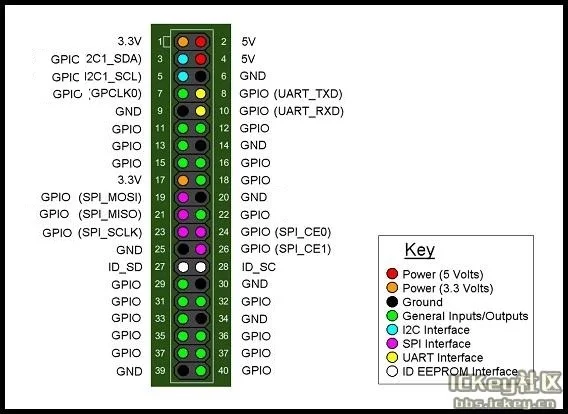

GPIO PIN define

Banana Pi BPI-M2+ (BPI-M2 Plus) has a 40-pin GPIO header that matches that of the Model Raspberry Pi 3. Following is the Banana Pi GPIO Pinout:

Specification

Brand Name : bpi

Demo Board Type : ARM

Certification : CE

Certification : FCC

Certification : RoHS

Origin : CN(Origin)

Interface : 2 x USB2.0

Interface : TF Card Support

Interface : HDMI-compatible/RCA Output

Memory Capacity : 2GB

Processor Brand : Allwinner

Model Number : BPI-M2+

Support : OV 5640 camera, not support 7/5 inch touch screen

+
