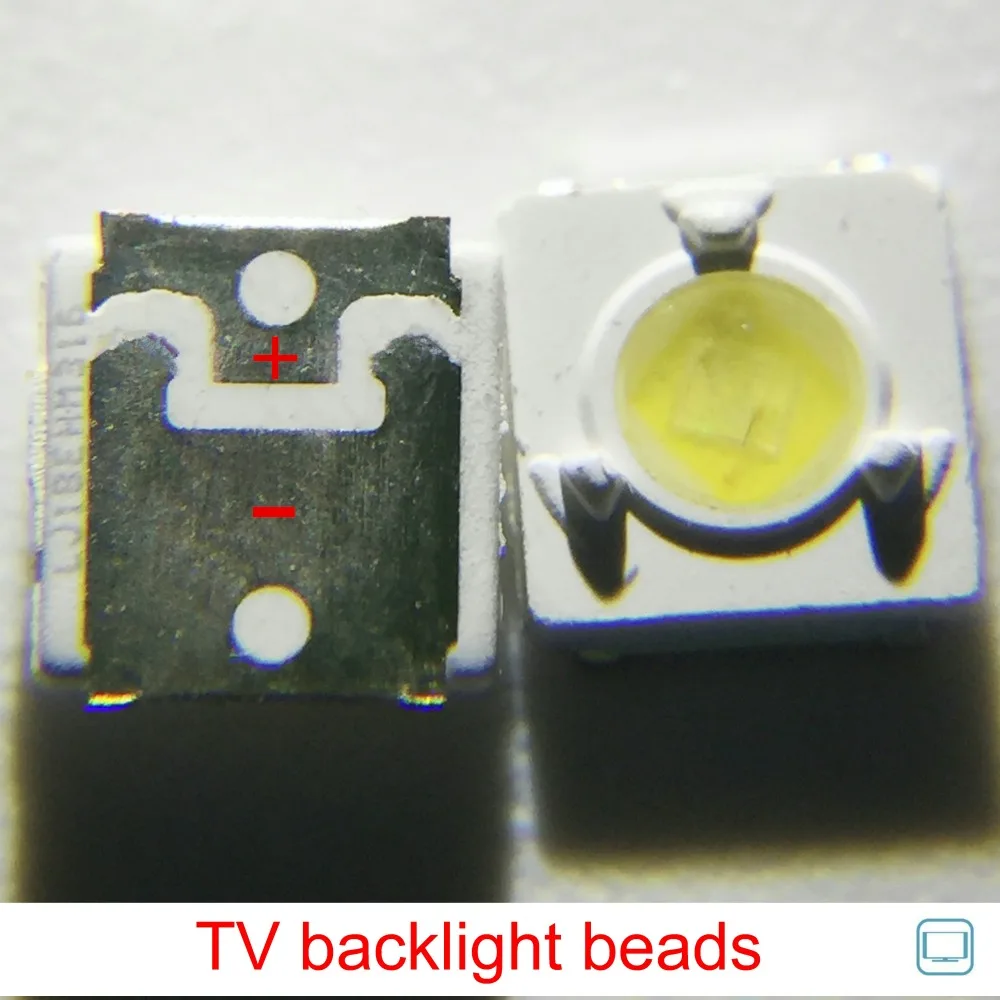

200PCS/Lot Korea LUMENS SEOUL Samsung LG UNI SMD LED 3535 3537 3V 1W Cool white For TV Backlight Lamp beads A127CECEBUP8C-6078

Category : Lights & Lighting
USD 12.00

200PCS/Lot Korea LUMENS SEOUL Samsung LG UNI SMD LED 3535 3537 3V 1W Cool white For TV Backlight Lamp beads A127CECEBUP8C-6078

Description

MODEL   NAME :  A127CECEBUP8C-6078
Manufacturer  :   LUMENS
Origin :  Korea
Package  Model:Loaded Quantity  5000PCS  Per  Reel
Forward Current      (IF ):  350mA
Pulse Forward  Curren t1(IFp): 500mA
Reverse  Current    (IR): 25mA
Reverse Voltage(VR):  5V  (5mA)
Power Dissipation  (PD):  mW
Operatin  Tgemperature(Topr):   -40 -  +85° C
Storage Temperature   (Tstg):  -40  -  +100° C
Soldering Temperature     (Tsld):  Reflow Soldering:260° C
for 10secs
Hand Soldering:350° C
for 3secs
Junctio  Tnemperature(Tj):  110°C
Forward  Voltage(VF):   3.15-3.40V(350mA)
Luminous Flux    (LM):     lm(350mA)
Luminous  Intensity  ( IV ) :  25-26cd  (350mA)
Wavelength    (nm):  -nm       mA
CIE : x=0.2666   y=0.2291(450mA)
Color Correlated Temperature    (CCT):
CRI  :
Viewing angle :

Lead Frame Type LED Package:  3.5×3.5×0.8mm    L×W×H    d=mm

Specification

Origin : CN(Origin)

Item Type : BALL

Model Number : Model Number LUMENS 3535 3537smd A127CECEBUP8C-6078

Certification : EMC

Voltage : 3V

Current : 350MA

+
