MSI.SDR 10kHz To 2GHz Panadapter SDR Receiver Compatible SDRPlay RSP1 TCXO 0.5ppm

( 137 reviews )
USD 37.09 USD 39.88

MSI.SDR 10kHz To 2GHz Panadapter SDR Receiver Compatible SDRPlay RSP1 TCXO 0.5ppm

View Detail
Description


2019 Latest version SDR receiver ,compatinble with SDR Play RSP1




KEY FEATURES

  •  Continuous coverage from 10kHz to 2GHz
  •  12-bit ADC silicon technology (not another 8 bit dongle!)
  •  Up to 10 MHz bandwidth

Built-in TCXO 0.5ppm

  •  Built-in Performance front-end filters ·
  •  Low noise floor
  •  Simple USB interface (type micro)
  •  SMA antenna socket
  •  Powers over the USB cable

      Compatible with SDRPLAY RSP1 software

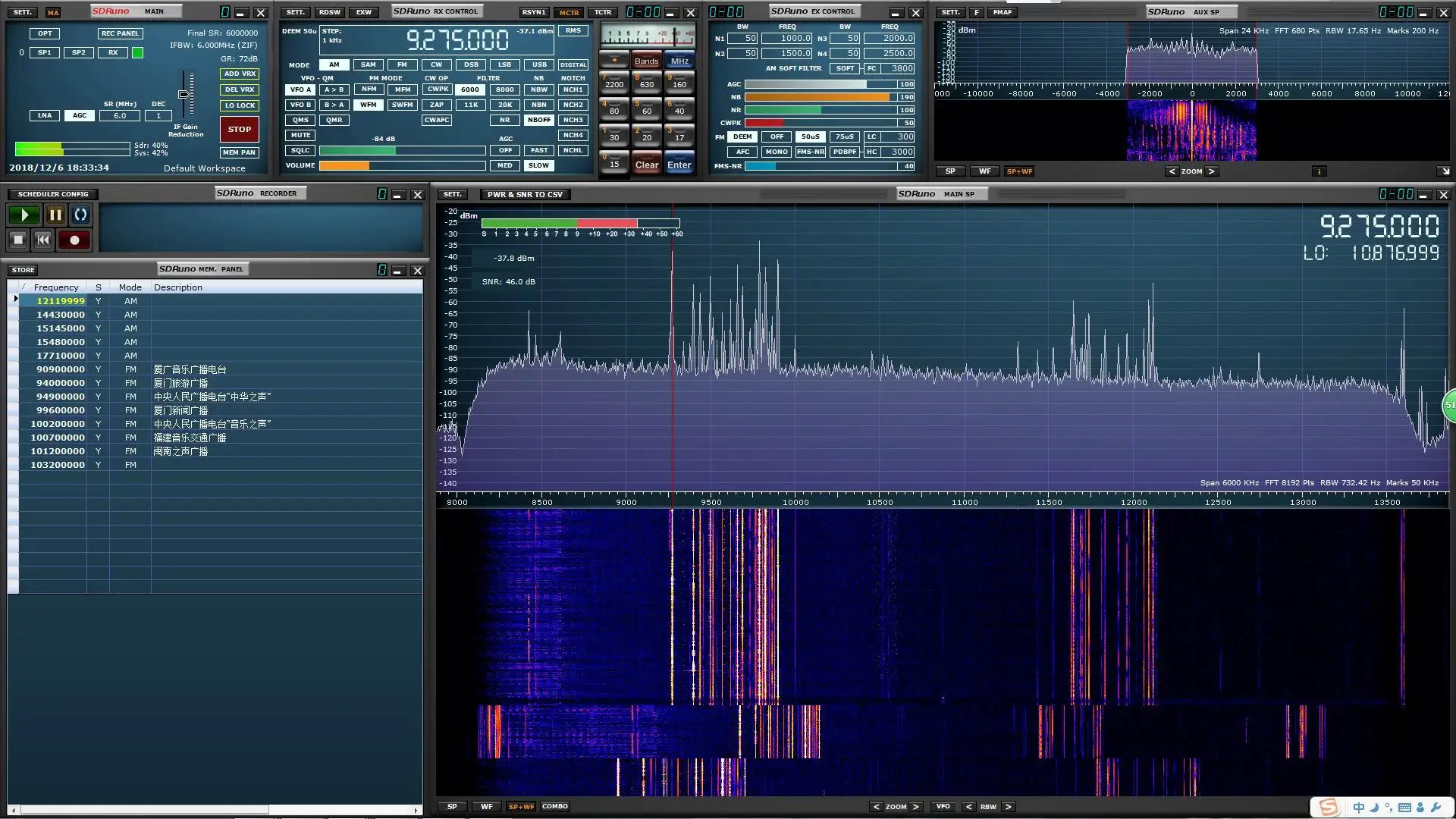

  •  SDRuno，HDSDR ，SDR# ，SDRConsole

Robust and strong aluminum case







  •   Ideal for portable operation
  •  No need for an up-converter
  •  Covers all amateur bands from experimental LF through HF, VHF and UHF
  •  Simultaneous entire amateur band monitoring possible
  •  Works with all the popular SDR software (including HDSDR, SDR Console, Cubic SDR & SDRuno)
  •  Compatible with existing open source radio software
  •  ExtIO based plugin available
  • Multiplatform support including Windows, Linux, Mac,Android and Raspberry Pi 2/3





  •  Weight 25g
  •  Size: 62mm x 25mm x 15mm
  •  Low Current: 120 – 175 mA

Connectivity

  •  Single 50Ω RF connector (SMA)
  •  USB 2.0 (high speed) type micro socket

Frequency Range

  •  Continuous coverage 10kHz – 2GHz
  •  Frequency Tolerance: 0.5ppm (max)
What you will get :

1x MsiSDR host X1
1x Micor USB cable (1.0M)
1x Test antenna
18
121617





Specification

Brand Name : LISCN

Item Type : SDR

Model Number : SDR radio
