SURPASSHOBBY Platinum Waterproof Combo 2845 4370KV 3930KV 3800KV 3100KV Brushless Motor w/ 45A ESC Programming Card for Wltoys

Category : Toys & Hobbies
USD 39.56USD 54.19

SURPASSHOBBY Platinum Waterproof Combo 2845 4370KV 3930KV 3800KV 3100KV Brushless Motor w/ 45A ESC Programming Card for Wltoys

Description

SURPASSHOBBY Platinum Waterproof Combo 2845 4370KV 3930KV 3800KV 3100KV Brushless Motor w/ 45A ESC Programming Card for Wltoys 12428 1/10 1/12 RC Car Boat Accessories



zhutu编程卡12RC365900-D-8-1



Features:

1.4 Poles design, high torque & high efficiency. The overall efficiency exceed 90 percent.
2.Low heat production, long lifetime, strong overload protection and it can function 95% of its features without any heat sink appliance.
3.High quality materials adopted: high intense aluminum alloy anodizing shell , front & back cover , high-performance temperature-resistant magnetic steel and imported high-speed bearing.
4.Precision balanced rotor,smoothness for best reliability and maximum RPM.
5.Stator- Super Thin (0.35mm)Laminationsk Removable/Replaceable Rotor.
6.Multiple protection features of the ESC: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throttle signal loss protection / motor blocked protection.

Specifications:
Brand: SURPASSHOBBY
Model: Platinum Waterproof 2845
Poles: 4
Watts: 800W
Max voltage: <12V
Max Amps: 66A
KV(RPM/Volt): 4370KV/3930KV/3800KV/3100KV(Optional)
Max RPM: 50000
Diameter: 28mm
Length: 47mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4.0mm golden banana plug
Weight:114g

ESC Specifications:

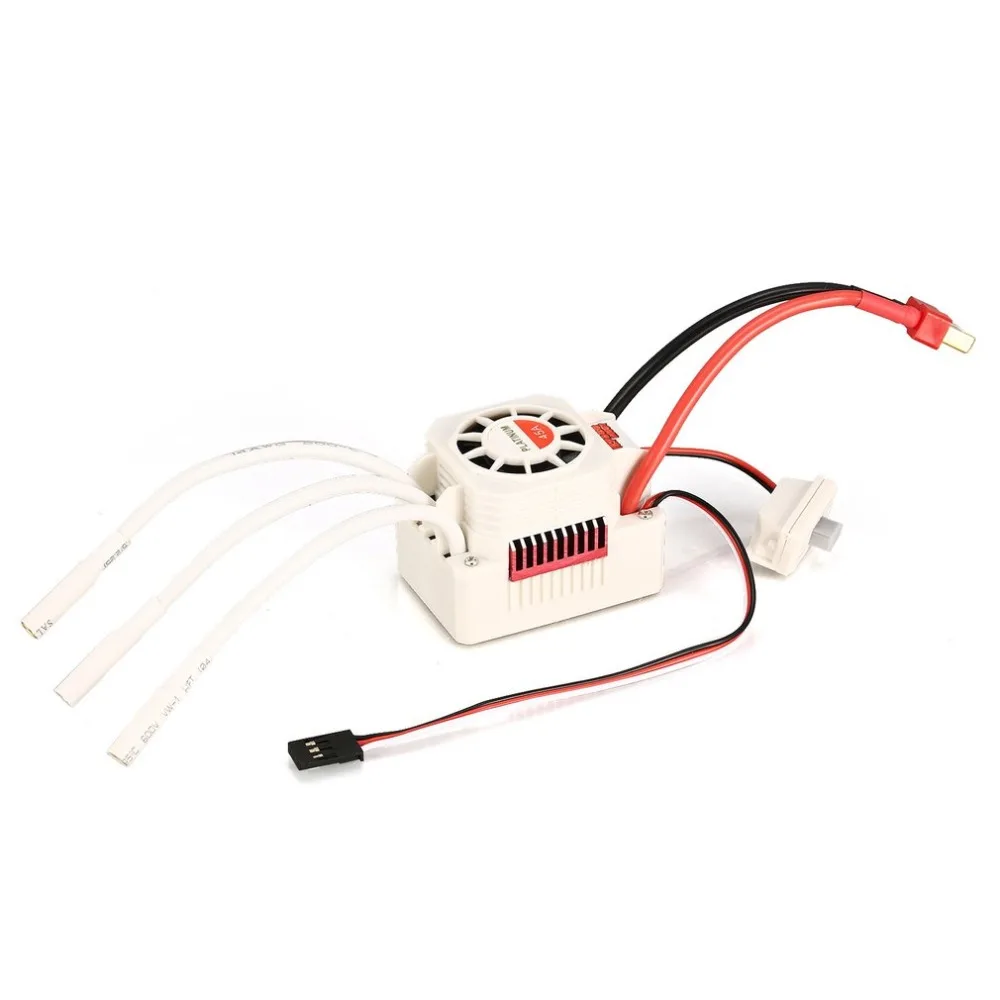

Item name: waterproof ESC
Continue current: 45A
Burst current: 240A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power supply plugs: T plug male
Motor plugs: 4mm plug female
Motor Type
For 2s Lipo or 6 cells NiMH:
On-road: 3656-size or smaller motor with the KV<5600
Off-road / Buggy / monstruo: 3656-size or smaller motor with the KV<3900
For 3s Lipo or 9 cells NiMH:
On-road: 3656-size or smaller motor with the KV<3800
Off-road / Buggy / monstruo: 3656-size or smaller motor with the KV<2700
Size:  51 * 35 * 36mm(without cables)
Weight: 90g

Package included:
1 * 2845 Brushless Motor
1 * 45A Brushless ESC
1 * ESC Programming Card
1 * Manual

Specification

Brand Name : SURPASS HOBBY

Origin : CN(Origin)

Material : Metal

Tool Supplies : Assembled class

Upgrade Parts/Accessories : Gear

RC Parts & Accs : Motors

Size : 28*47*15mm

Use : Vehicles & Remote Control Toys

Technical parameters : Value 2

Model Number : 2845 45A

Remote Control Peripherals/Devices : MOTOR

For Vehicle Type : Cars

Four-wheel Drive Attributes : Motors

Wheelbase : Screws

+
