Raspberry X828 Stackable 2.5" SATA HDD/SSD Shield Expansion Board USB3.0 Hub for Raspberry Pi 4 B/3B+/3B/2B/1B+

Description

X828 Stackable 2.5" SATA HDD/SSD Shield







Product Description

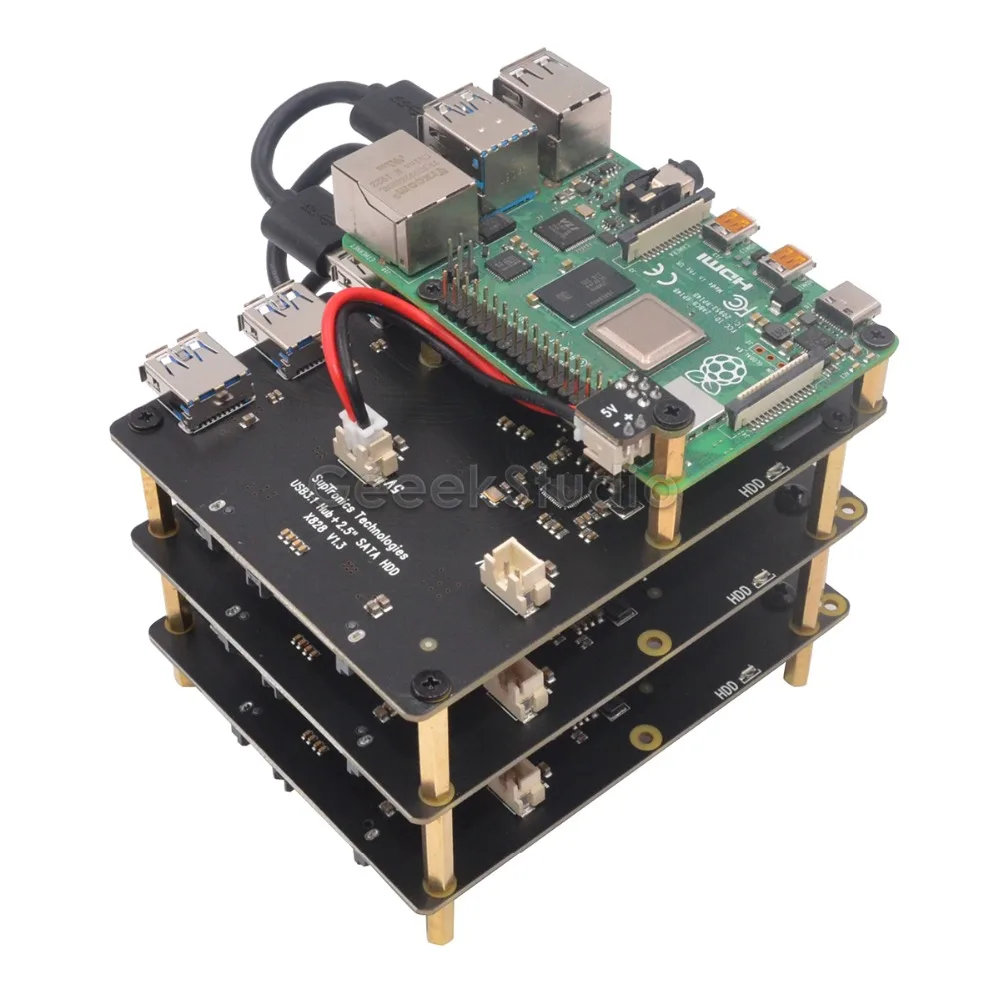

The X828 is a stackable 2.5" SATA HDD expansion board focused on providing a bigger storage solution for your Raspberry Pi B/2B/3B/4B. The board is a great way to give a desktop look, as you can connect multiple external hard drivers without having them "hanging" from the USB ports of your SBC. Knowing that our users might need more USB entrances, we added to extra USB 3.1 Gen1 ports to the X828, so the user can connect keyboards, USB sticks or even other external HDDs. If you are looking for building a Media Center or even a Network-attached storage (NAS), the X828 is the right board for it.  You will be able to separate one hard disk only for operating system and the rest for media, games...etc.

Raspberry Pi 4B is not contained in this product.





Product Features

  • Ideal storage solution for Raspberry Pi - Stackable 2.5" SATA HDD/SSD Shield
  • Supports multiple 2.5 SATA HDDs/SSDs working at the same time
  • Supports up to 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD)
  • Supports operating system installation and booting from your HDD/SSD
  • Provides additional 3 USB3.1 Gen1 ports for Raspberry Pi
  • Function to power the RPI via XH2.54 only needing a single power supply
  • Function to power the stackable X828 via USB3 Male-to-male cable only needing a single power supply
  • Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller
  • Integrated USB 3.1 Gen 1 Hub Controller
  • USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi 4
  • USB2.0 480Mb/s connectivity offers plug-and-play functionality on your Raspberry Pi 3
  • Quick file transfer with high-speed USB3.1 5Gb/s connectivity from a PC or a Mac
  • Specially-made ultra short USB3.1 cable to connect with Raspberry Pi and stackable X828 boards
  • LED blue indicator indicates drive status
  • Fully compatible with X735 for intelligent power management and cooling your Raspberry Pi
  • Fully compatible with X710 for wide input voltage (6~36V) and intelligent power management
  • Fully compatible with X765 for powering over Ethernet (POE, 5V 5A)
  • Fully compatible with X725 for uninterruptible power supply (18650 UPS, 5.1V 8A, WOL)

Notes:

For use with original power supply unit only

WARNING: Do not power your Raspberry Pi via the Pi's 40-pin header and micro-USB socket at the same time.







Product Specification

  • Power supply: 5.1Vdc +/-5%, ≥4A
  • Ports & Connectors: DC jack - 5.5x2.5mm
  • USB socket - USB 3.0 type A
  • Power connector - XH2.54 2-pin
  • SATA socket - 7+15P Female
  • PCB Size 107.5mm x 85mm







Package Includes

Bundle 1 Only the X828 Board

  • 1 x X828 HDD/SSD expansion board
  • 1 x USB 3.0 A Male to A-Male Data cable
  • 1 x 2-Pin Power Connection Wire
  • 1 x Power daughter board
  • 4 x Spacer M/M M2.5 x 13mm
  • 4 x Spacer M/M M2.5 x 15mm
  • 1 x Spacer M/F M2.5 x 11mm
  • 4 x Spacer M/F M2.5 x 25mm
  • 12 x Screw M2.5 x5mm
  • 2 x Screw M3 x 6mm



Bundle 2 Board and Power

  • 1 x Bundle 1
  • 1 x 5.1V/4A Power supply





Technical Support

//wiki.52pi.com/index.php/X828_SKU:_EZ-0088





Gallery



X828_1200p3

X828_1200p1X828_1200p2X828_1200p4X828_1200p5X828_1200p6X828_1200p7X828_1200p8

X828_1200p9

Specification

Brand Name : geeekpi

Accessory Type : Extension Board

Compatible With : Raspberry Pi 4 B/3B+/3B/2B/1B+

Origin : CN(Origin)

+
