X728 ups hat & power management board with ac power loss detection, safe shutdown function for Raspberry pi 4b / 3b+ / 3b

Category : Computer & Office
USD 42.67USD 43.99

X728 ups hat & power management board with ac power loss detection, safe shutdown function for Raspberry pi 4b / 3b+ / 3b

Description

X728 Power Mgt + UPS Board

Description:

X728 UPS power supply equipment can support multiple charging methods: USB-C, 5V DC charging can be also supported cascading equipment.

Including a variety of different X series storage devices.
In this UPS also provides RTC function and programmable voltage and current reading function.
UPS provides a coulomb counter in the device.
Communicates with the Raspberry Pi through I2C, and can implement system-level low-voltage warnings and power-off warnings by installing driver scripts.
Power failure detection and notification to users, power safety management, low-voltage automatic shutdown (implemented by hardware).
Support for advanced path management can extend battery life, support 3A fast charging, most of the current charging is 2.1 or 2.4A.



Features:

Easy to assemble
Battery Level Low warning LED indicator
5V Out status LED indicator
Power status LED indicator
Charging Status LED indicator
Support cascade to X-series storage devices

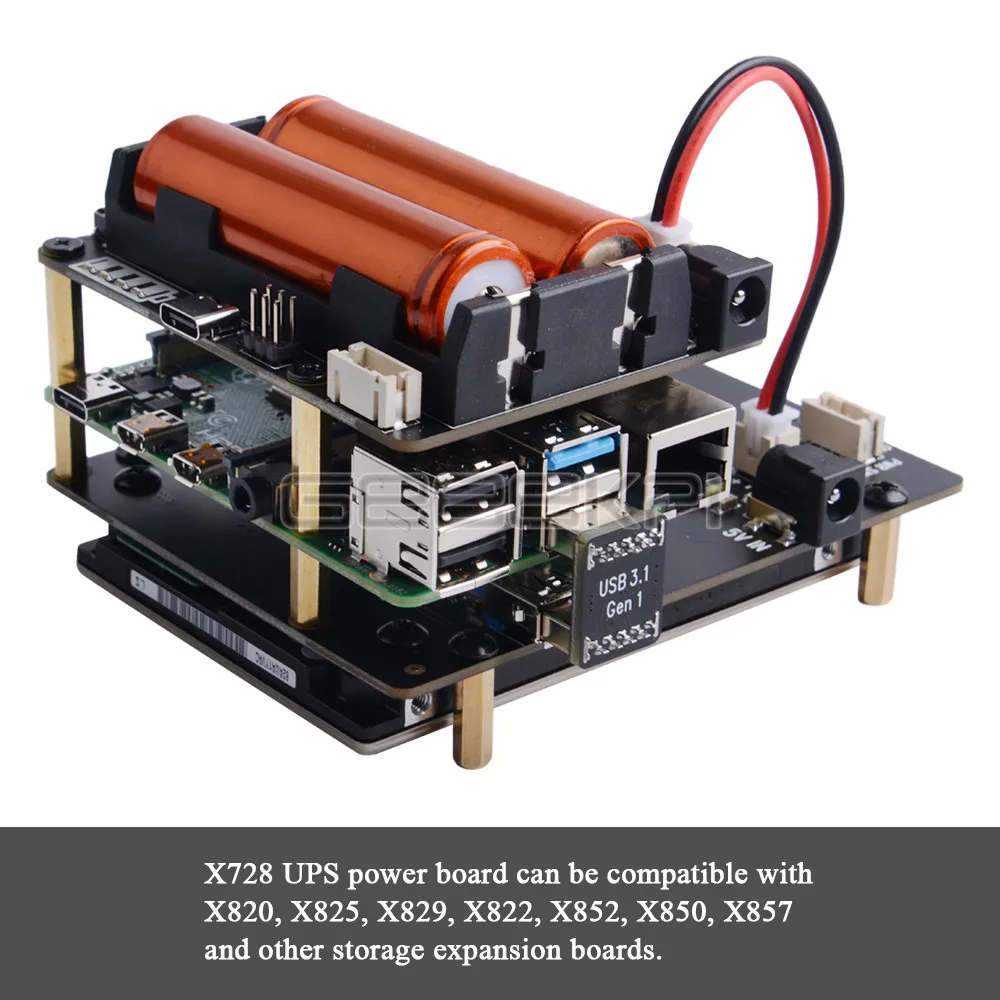

Compatible with X820, X825, X829, X822, X852, X850, X857 and other storage expansion boards.
Programmable voltage and current reading
Support RTC funciton



Package includes:

1 x X728 Power Mgr+ UPS

1 x Acrylic plate
4 x Double Pass Copper Column
4 x Short Single Pass Copper Column
4 x Long Single Pass Copper Column
8 x Black Screw
清单2









Gallery:

X728_6_5X728_7zhengfan



X728_9_2X825_2_22接口图2接口图1_副本X728_13X825_3X825_5安装

Specification

Brand Name : geeekpi

Accessory Type : Extension Board

Compatible With : Raspberry Pi 4B / 3 B+ / 3 B

Origin : CN(Origin)

+
